Pentax CM80-160A
Login to view prices

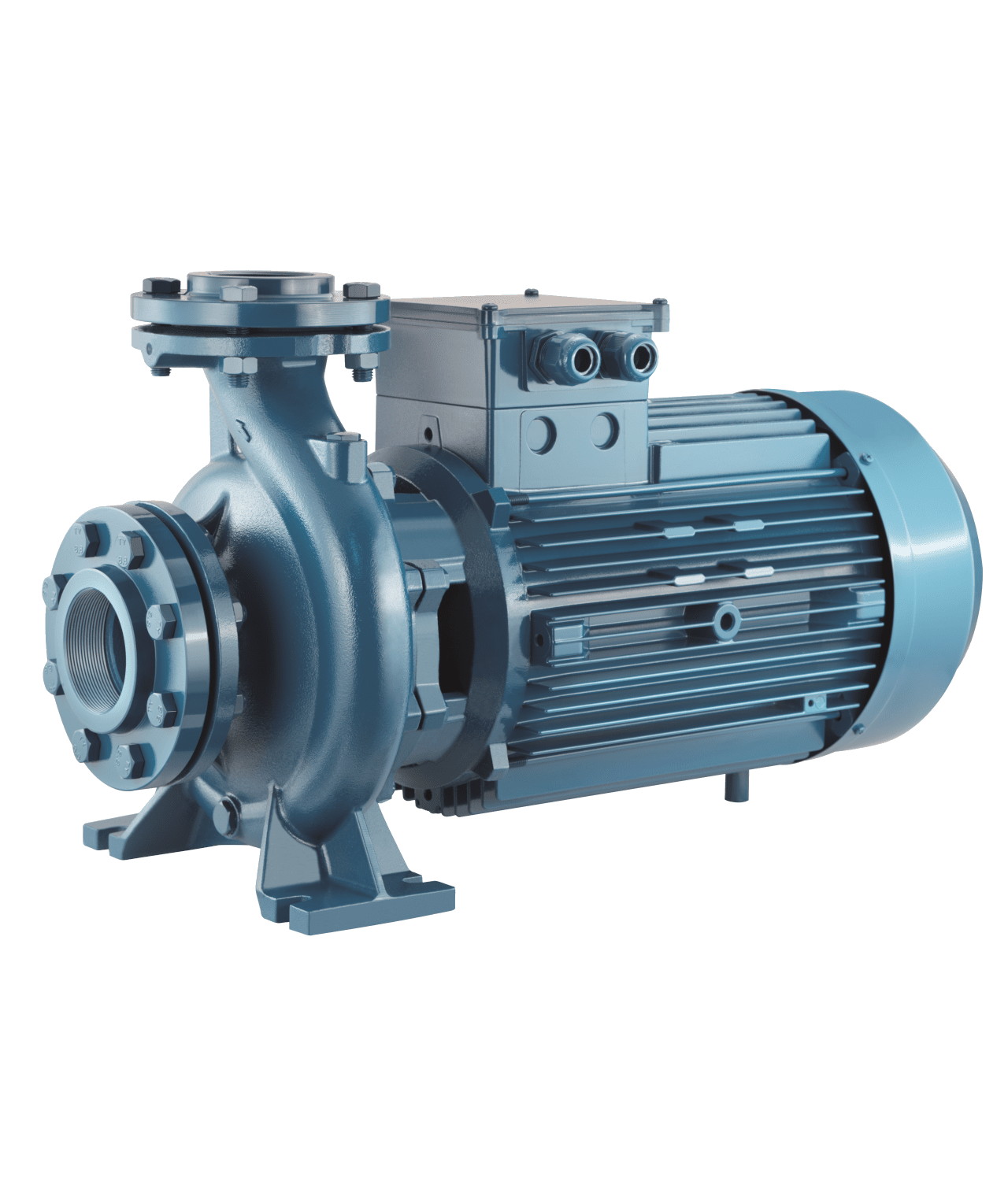

The Pentax CM80-160A is a Monobloc horizontal centrifugal pump, constructed to EN 733 standards; widely used in water supplies, pressurisation, and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural
applications; standard supply with counter-flange.
Description
Pentax CM80 – 160A
The Pentax CM80 – 160A is a Monobloc horizontal centrifugal pump, constructed to EN 733 standards; widely used in water supplies, pressurisation, and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural
applications; standard supply with counter-flange.
Product Details
Application
- Water Supply
- Irrigation
- Pressurisation/Boosting
- Fire-Fighting Systems
- Cooling
- Heating
- Industrial
- Agricultural
Construction Features
- Pump Body – Cast Iron
- Motor Bracket – Cast Iron
- Impeller – Cast Iron, Bronze or Stainless stee
- Mechanical Seal – Ceramic Graphite
- Motor Shaft – Stainless Steel AISI 304
- Liquid Temperature – 10 – +90 °C
- Operation Pressure – Max 10BAR
Motor
- 2 Poles Induction Motor – 3~ 400/690V-50Hz P > 4kW
- Insulation Class F
- Protection Degree – IP55
